This post started out as a “how to” for SwiftUI, but as I started testing and verifying I realized it is just an Xcode 13 bug. Historically, if you wanted to restrict your iOS app to specific device orientations, you would check or uncheck the various “Device Orientation” options in your project settings. You can find these by selecting your Xcode Project > App Target > “General” tab.

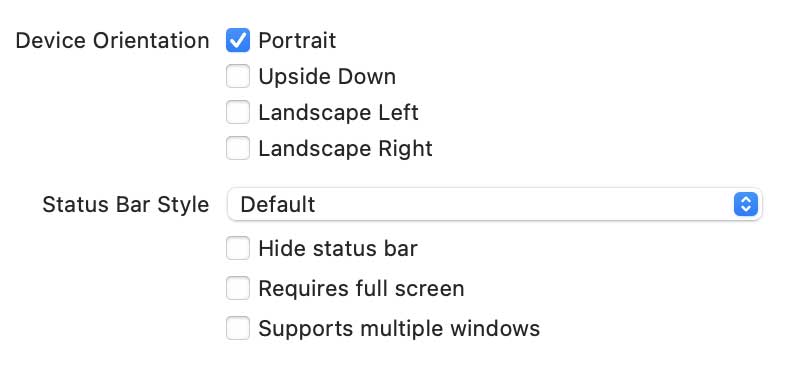

Xcode project device orientation options

Xcode project "Device Orientation" options.

The way this works — or should work — is that it modifies the underlying property list for your app, the Info.plist file. Specifically, these check boxes should update the value for the UISupportedInterfaceOrientations key. If you have iPhone-specific or iPad-specific orientation values, the keys are UISupportedInterfaceOrientations~iphone and UISupportedInterfaceOrientations~ipad, respectively.

However, as of Xcode 13 this checkbox has no effect. For example, if you select only “Portrait” orientation and run your app, it will still rotate to all orientations as the device rotates.

For the SwiftUI app I’m working on, I wanted to restrict the device orientation on iOS to only portrait mode. I rarely do this, instead opting to support all orientations. But, for this app landscape orientation does not make sense. I selected only portrait as a supported device orientation, as pictured above. It did not work. The app UI still rotated on device rotation.

I thought this was a SwiftUI bug and searched online for a solution. However, I later realized that this bug affects UIKit-based apps too. It’s a bug in Xcode 13. The problem, as I already hinted, is that the underlying plist is not updated correctly. I suspect this issue is a result of the new behavior in Xcode 13 where it will automatically generate plist files for you. This new behavior applies by default to projects newly created with Xcode 13.

Looking at source for the plist immediately reveals the problem.

<key>UISupportedInterfaceOrientations</key>
<array>
    <string>UIInterfaceOrientationPortrait</string>
</array>
<key>UISupportedInterfaceOrientations~iphone</key>
<array>
    <string>UIInterfaceOrientationPortrait</string>
    <string>UIInterfaceOrientationLandscapeLeft</string>
    <string>UIInterfaceOrientationLandscapeRight</string>
</array>
<key>UISupportedInterfaceOrientations~ipad</key>
<array>
    <string>UIInterfaceOrientationPortrait</string>
    <string>UIInterfaceOrientationPortraitUpsideDown</string>
    <string>UIInterfaceOrientationLandscapeLeft</string>
    <string>UIInterfaceOrientationLandscapeRight</string>
</array>

The checkboxes in the project settings correctly modify the values for UISupportedInterfaceOrientations, but they only modify the values for that key. By default, there are also values for UISupportedInterfaceOrientations~iphone and UISupportedInterfaceOrientations~ipad, which take precedent over the values in UISupportedInterfaceOrientations.

To resolve the issue, you have 2 options:

  1. Remove both the ~iphone and ~ipad key variants. This will restore the functionality of the checkbox settings, as UISupportedInterfaceOrientations will now be used for all devices. The checkboxes correctly update this key in the plist and will accurately reflect the configuration.

  2. Remove UISupportedInterfaceOrientations and edit the device-specific values. Do this if you want different behavior for iPhone and iPad. Note that this will result in the checkboxes not accurately reflecting the actual configurations in the plist. Furthermore, if you modify the checkboxes again Xcode will re-add the UISupportedInterfaceOrientations key with the checked values resulting in all 3 keys being present in your plist.

This was reported as FB9757266.
